| * Especificamente diseñadas para trabajo pesado |
| * Para transferencia de desagües y desechos de aguas residuales con alta eficiencia y seguridad |
| * Uso residencial, comercial e industrial |
| * Útil para: vaciado de agua y desagüe de desechos de aguas residuales donde los materiales deben ser movidos hacia arriba a la conexión del área de recolección o líneas sépticas o áreas |
| |
| Motor |
1/2 HP Split Phase |
| Maximun flow rate |
80 GPH @ 5' |
| |
303 LPM @ 152m |
| Maximun head |
26' ............ 7.9m |
| Intermittent Liquid Temp to. |
140°F ......... 60°C |
| Discharge |
1 1/2" FNTP (38.1mm) |
| Housing |
Epoxy coated cast iron |
| Relay Cover |
Glass-filled nylon |
| Volute |
ABS/Cast iron |
| Impeller |
Vortex nylon |
| Shaft seal |
Carbon/Ceramic |
| Bearings |
Upper an lower: ball bearings |
| Operation |
|
10-CIM |
Manual |
10-CIA-RFS |
Manual ro Automatic |
| Activator |
Piggyback machanical float switch |
Switch on |
Switch off |
11"-15" |
5"-9" |
27.9cm - 38.1cm |
12.7cm - 22.8cm |
| Electrical |
|
511200 |
115V, 60Hz, 10.5 amps. |
|
15' (4.6m) power cord |
511225 |
115V, 60Hz, 10.5 amps. |
|
25' (7.6m) power cord |
511275 |
208-230V, 50/60Hz |
|
6.5 amps/5.4amps |
|
15' (4.6m) power cord |
511300 |
115V, 60Hz, 10.5 amps. |
| |
15' (4.6m) power cord |
|
|
|
| Motor |
1/2 HP Split Phase |
| Maximun flow rate |
120 GPH @ 5' |
| |
454 LPM @ 152m |
| Maximun head |
28' ............ 8.4m |
| Solids handling (dia) |
11/4" ................. 31.7mm |
| Interpreted Liquid Temp. to |
140°F .................. 60°C |
| Discharge |
2" FNTP (51mm) |
| Housing |
Epoxy coated cast iron |
| Relay cover |
Glass-filled nylon |
| Volute |
Epoxy coated cast iron |
| Impeller |
Glass-filled nylon |
| Shaft Seal |
Carbon/Ceramic |
| Bearings |
Upper and lower ball bearings |
| Operation |
|
10SH-CIM |
Manual |
10SH-CIA-RFS |
Manual ro Automatic |
| Activator |
|
10SH-CIA-RFS |
Piggyback mechanical float switch |
Switch on |
Switch off |
9"-14" |
2"-6" |
35.6cm - 45.7cm |
20.3cm - 30.4cm |
| Electrical |
|
511420 |
115V, 60Hz, 11 amps. |
|
15' (4.6m) power cord |
511480 |
208-230V, 50/60Hz, 6.7/5.5 amps |
|
15' (4.6m) power cord |
511520 |
115V, 60Hz, 11 amps. |
|
15' (4.6m) power cord |
511525 |
115V, 60Hz, 11amps. |
| |
15' (4.6m) power cord |
|
|
|

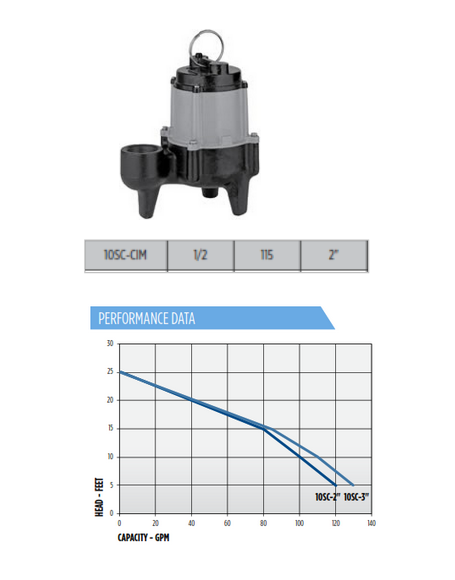

| Motor |
1/2 HP Split Phase, relay start |
| Maximun flow rate |
110 GPH @ 5' |
| |
416 LPM @ 152m |
| Maximun head |
20' ............ 6m |
| Solids handling (dia) |
2" ................. 51mm |
| Interpreted Liquid Temp. to |
140°F .................. 60°C |
| Discharge |
|
| 511400 |
2" (51mm) FNTP |
| 511450 |
3" (76mm) FNTP |
| 511475 |
2" (51mm) FNTP |
| 511501 |
2" (51mm) FNTP |
| 511500 |
2" (51mm) FNTP |
| Housing |
Epoxy coated cast iron |
| Relay cover |
Glass-filled nylon |
| Volute |
Epoxy coated cast iron |
| Impeller |
Nylon |
| Shaft Seal |
Carbon/Ceramic |
| Bearings |
Upper and lower ball bearings |
| Operation |
|
10S-CIM |
Manual |
|
|
|
ELIMINATOR
CLAVE 238 115 V 1F
CLAVE 239 220 V 1F |
| Motor |
1/2 HP Permanent Split Capacitor |
| Maximun flow rate |
100 GPH @ 10' |
| |
379 LPM @ 3m |
| Maximun head |
25' ............ 7.6m |
| Solids handling (dia) |
2" ................. 51mm |
| Interpreted Liquid Temp. to |
140°F .................. 60°C |
| Discharge |
|
| 514320 |
2" (51mm) FNTP |
| 514321 |
2" (51mm) FNTP |
| 514420 |
3" (76mm) FNTP |
| Housing |
Epoxy coated cast iron |
| Cover |
Epoxy coated cast iron |
| Volute |
Epoxy coated cast iron |
| Impeller |
Two vane non-clog |
| |
epoxy coated cast iron |
| Shaft Seal |
Carbonic/Ceramic |
| Bearings |
Upper and lower ball bearings |
| Operation |
Manual |
| Electrical |
|
| 514320 |
115V, 60Hz, 11.6 amps. |
| |
20' (6m) power cord. |
| 514321 |
208-230V, 60Hz, 4.6 amps. |
| |
20' (6m) power cord. |
| 514420 |
115V, 60Hz, 11.6 amps. |
| |
20' (6m) power cord. |
|
|
|

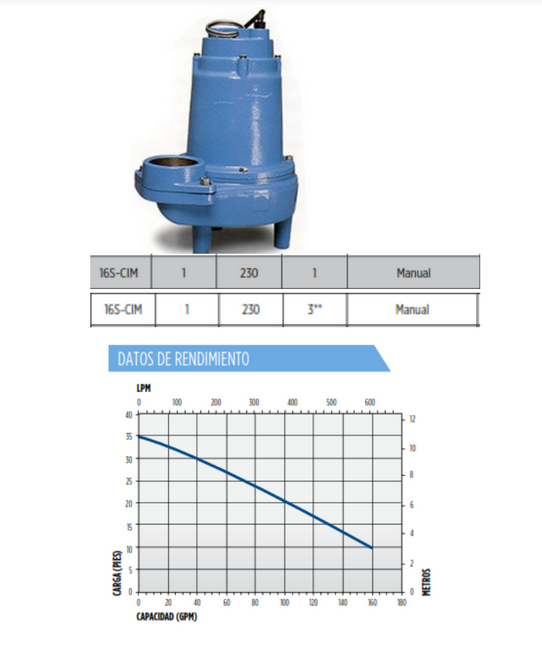

| Motor |
1 HP Permanent Split Capacitor |
| Maximun flow rate |
160 GPH @ 10' |
| |
606 LPM @ 3m |
| Maximun head |
35' ............ 10.7m |
| Solids handling (dia) |
2" ................. 51mm |
| Interpreted Liquid Temp. to |
140°F .................. 60°C |
| Discharge |
3" (76mm) FNTP |
| Housing |
Epoxy coated cast iron |
| Cover |
Epoxy coated cast iron |
| Volute |
Epoxy coated cast iron |
| Impeller |
Two vane non-clog
epoxy coated cast iron |
| Shaft Seal |
Carbonic/Ceramic |
| Bearings |
Upper and lower ball bearings |
| Operation |
Manual |
| Electrical |
|
| 514620 |
230V, 60Hz, 11 amps. |
| |
20' (6m) power cord. |
| 514625 |
200-208V, 60Hz, 11 amps. |
| |
20' (6m) power cord. |
| 514630 |
230V, 60Hz, 11 amps. |
| |
40' (6m) power cord. |
| 514720 |
230V, 60Hz, 6.3 amps., 3PH* |
| 514730 |
460V, 60Hz, (380V/50Hz) |
| |
3 amps., 3PH* |
| |
20' (6m) power cord. |
| 514740 |
575V, 60Hz, 2.5 amps. 3PH* |
| |
20' (6m) power cord. |
| 514750 |
200-208V, 60Hz, 6.8 amps. |
| |
3 PH* 20' (6m) power cord |
|
|
|
MAGNUM
CLAVE 243 220 V 1F
CLAVE 244 220 V 3F |

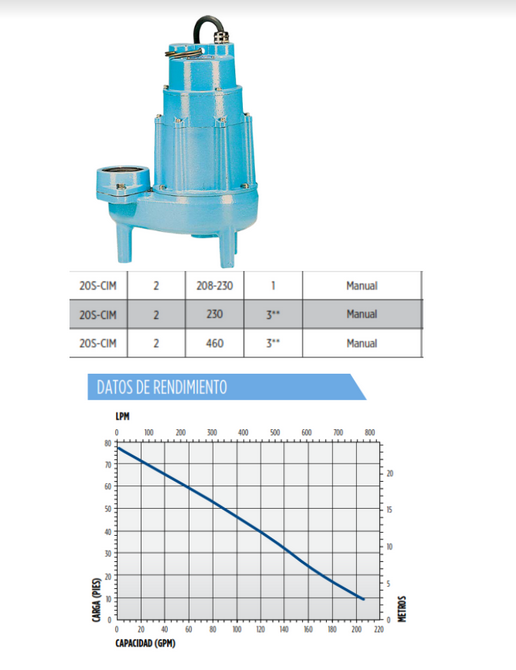

| Motor |
2 HP Capacitor start on single phase |
| Maximun flow rate |
205 GPH @ 10' |
| |
776 LPM @ 3m |
| Maximun head |
77' ............ 23.5m |
| Solids handling (dia) |
2" ................. 51mm |
| Interpreted Liquid Temp. to |
140°F .................. 60°C |
| Discharge |
3" (76mm) FNTP |
| Housing |
Epoxy coated cast iron |
| Cover |
Epoxy coated cast iron |
| Volute |
Epoxy coated cast iron |
| Impeller |
Bronze |
| Shaft Seal |
Carbonic/Ceramic |
| Bearings |
Upper and lower ball bearings |
| Operation |
Manual |
| Electrical |
|
| 520100 |
230V, 60Hz, 17.5 amps. |
| |
20' (6m) power cord. |
| 520125 |
200-208V, 60Hz, 14.5 amps. |
| |
3PH* 20' (6m) power cord |
| 520150 |
230V, 60Hz, 12.6 amps., 3PH* |
| |
20' (6m) power cord. |
| 520175 |
460V, 60Hz, 6.1 amps., 3PH* |
| |
20' (6m) power cord. |
|
|
|
|
|
